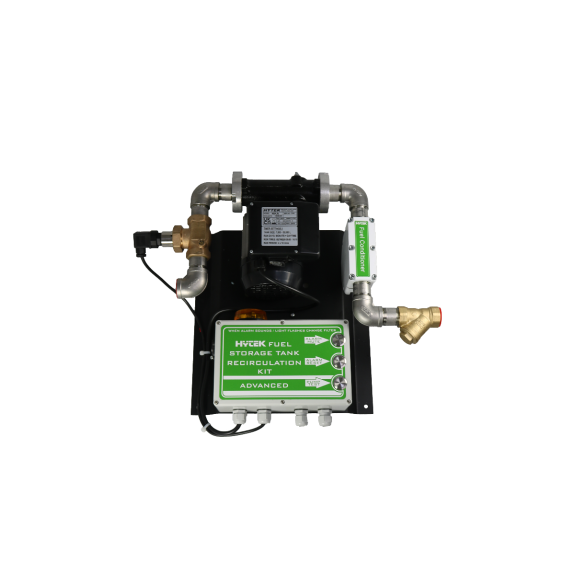

RKA

Advanced version of our standard re-circulation kit (RK) requested by our current fuel storage tank re-circulation kit customers who required some extra features on certain installation.

Extra Features:

• Large flashing beacon.
• Sounder 90 dB.
• Test button.
• Mute button - stops sounder however leaves the beacon flashing.
• Cancel/reset button - cancels the alarm when pressed but when the pump run cycle starts again it will alarm again if the fault has not been rectified.
• Pump running/pump stop outputs (passive contacts) for connection to BMS system.

Standard Features:

• As per our standard re-circulation kit (RK).
• When the pump flow rate drops below a preset limit (indicating a clogged filter) the flow switch closes & a warning light flashes (for the RKA a sounder also activates & a powerful flashing beacon replaces the RK warning light).
• Can be linked to our remote warning device (RWD2).
• External alarm outputs, rated at 230VAC 10A max.
• 230V pump unit, inlet strainer, fuel conditioner, flow switch, filter clogged warning light, timer & mains junction box.
• Mounted on a wall/tank mounting plate.
• Weatherproof for outdoor use.

Filtration:

• Better fuel filtration is becoming more important due to modern engines & critical power situations ie transport bulk fuel storage tanks & generator bulk fuel storage tanks.
• We offer a 10 micron particle/water filter kit clear bowl assembly re our standard re-circulation kit (RKF).
• Customers have requested better filtration & also larger contamination holding capacity filters, we now offer two NEW options.

Options:

• FM.RK.F - Clear bowl particle/water kit 10 micron.
• NEW - RKF2 - Spin on particle/water kit 2 micron (standard capacity) - Cim-Tek
• NEW - RKF2H Spin on particle/water kit 2 micron (high capacity) - Cim-Tek
• A flow meter can be fitted to provide an ongoing total of fuel circulated.
