CT40189

Important note: Delivery time: +/- 8 weeks (equipment made to order, zero stock at our factory and in our warehouse)

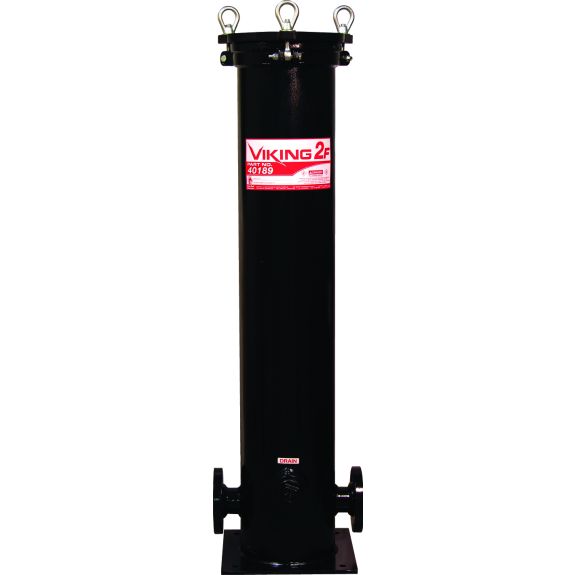

The Viking 2F is designed for Filtration of gasoline, diesel fuel, fuel oils, hydraulic oils, synthetic oils, transformer oils and many other solvents and thiners.

Features:

• Height: 122 cm
• Width: 38 cm (incl. flanges)
• Material: Carbon steel
• Connection: 2" flanged inlet/outlet
• Flow Rate: 565L/min.
• Max. Working Pressure: 10bar
• Housing: Carbon Steel and Epoxy Coating inside and outside
• Filter Element: 2 units
• Replacement Element 6"x18" (NOT INCLUDED)
• Bottom Plate: 30x30 cm bottom plate and a 3 bolt, swing down lid. (This lid can be hooked up straight through or at 90 degrees)
• Drain: included
• Certification: ASME

Remarks:

• There are 2 port connections for an optional differential pressure gauge.
