CT40190

Important note: Delivery time: +/- 8 weeks (equipment made to order, zero stock at our factory and in our warehouse)

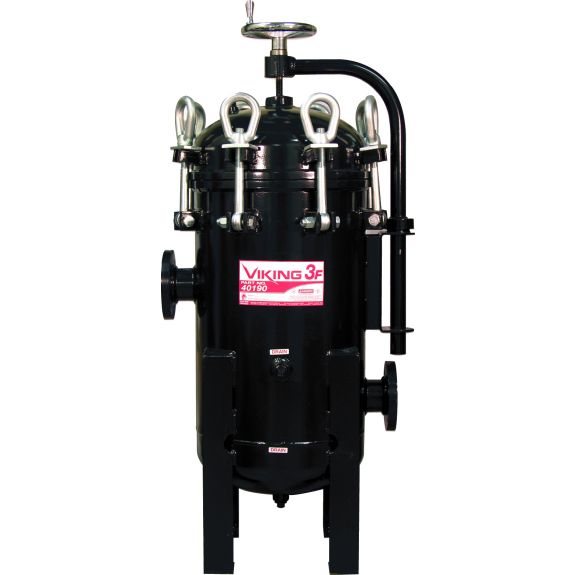

The Viking 3F is designed for Filtration of gasoline, diesel fuel, fuel oils, hydraulic oils, synthetic oils, transformer oils and many other solvents and thiners.

Features:

• Height: 150 cm (including the 30 cm legs)
• Width: 66 cm
• Material: Carbon steel
• Connection: 3" flanged inlet/outlet
• Flow Rate: 1135 L/min.
• Max. Working Pressure: 10bar
• Housing: Carbon Steel and Epoxy Coating inside and outside
• Filter Element: 4 units
• Replacement Element 6"x18" (NOT INCLUDED)
• Lid: Can be opened through a Hydraulic Lifting System
• Drain: included
• Certification: ASME

Remarks:

• There are 2 port connections for an optional differential pressure gauge.
