CT40191

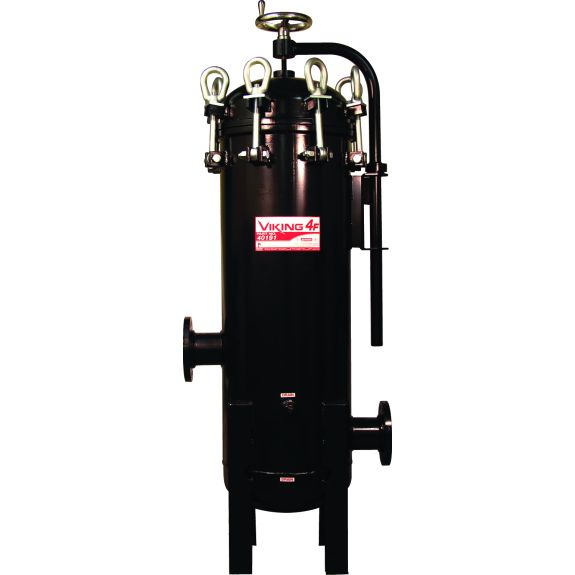

 Viking 4F | 4" flanged Inlet/Outlet | 1892 L/min.
In stock
CT40191
 Viking 4F | 4" flanged Inlet/Outlet | 1892 L/min.
SKU
CT40191
CT40191
 Viking 4F | 4" flanged Inlet/Outlet | 1892 L/min.
Important note: Delivery time: +/- 8 weeks (equipment made to order, zero stock at our factory and in our warehouse)
The Viking 4F is designed for Filtration of gasoline, diesel fuel, fuel oils, hydraulic oils, synthetic oils, transformer oils and many other solvents and thiners.
Features:
- Height: 152 cm (including the 25 cm legs)
- Width: 66 cm
- Material: Carbon steel
- Connection: 4" flanged inlet/outlet
- Flow Rate: 1892 L/min.
- Max. Working Pressure: 10bar
- Housing: Carbon Steel and Epoxy Coating inside and outside
- Filter Element: 8 units
- Replacement Element 6"x18" (NOT INCLUDED)
- Lid: Can be opened through a Hydraulic Lifting System
- Drain: included
- Certification: ASME
Remarks:
- There are 2 port connections for an optional differential pressure gauge.
