FCAB2A.2

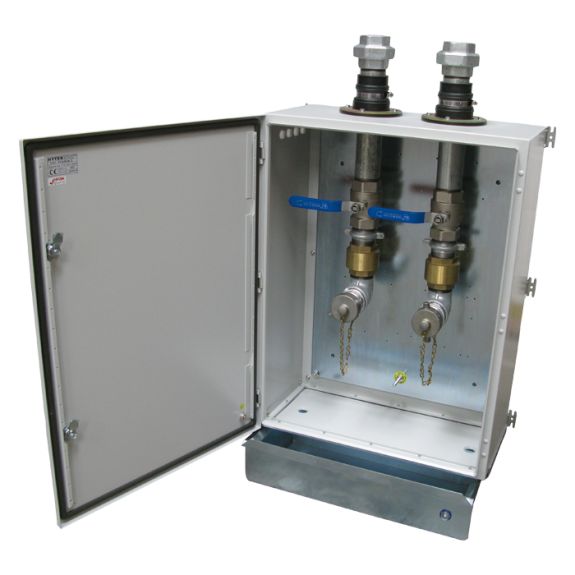

Our Hytek Engineered Fill Point Cabinet is designed for security to lock away a fuel storage tank remote fill point assembly. The benefit of NOT having a window in the fill point cabinet is that it offers extra security, preventing opportunistic theft by seeing what's housed inside it. Window option available.

It has an integral drip tray with sight glass that can only be removed when the fill point cabinet door is open to prevent unauthorised emptying & pollution. Please note: There is limited space to house tank alarms & gauges, which can be purchased separately.

Key Features and Benefits:

• 2" dual/twin fill point cabinet with 2 x fill point assemblies, top entry
• Wall mounting steel powder coated cabinet with external mounting brackets to make installation quick & easy
• Integral drip tray with sight glass can only be removed when the fill point cabinet door is open to prevent unauthorised emptying, helping to prevent pollution
• 2 x non return valves to prevent line draining
• 2 x lever ball valves to isolate line
• 2 x parallel thread connection with 2 x aluminium caps & chains, helps prevent drips/leaks
• Robust hinged door with lockable handle.
• Top entry with 2 x weatherproof seals, connection via 2 x 2" galvanised unions
• Dimensions: 1040mm H x 600mm W x 340mm D

Option:

• Glazed front panel/door version allows the fill point assemblies to be viewed without opening the door (FCAB2AW.2)
